Hober 7.5Kw Solar Pumping Inverter MPPT Hybrid solar Water Pumping inverter
The Hober 7.5Kw Solar Pumping Inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. The inverter is appropriate for single-phase pumps with power requirements below 7500 Watts.
- Working time,
- Hybrid/stop,
- Dry-run Software protection,
- Water Sensor, AC output Voltage,
- AC output Phase loss,
- Easy Inverter Working Time Calibration,
- Over -Current or Over Load,
- Factory Reset
Hober 7.5Kw Solar Pumping Inverter System Configuration
|
No.
|
Item
|
Description
|
Quantity
|
|
1
|
PV Module 330Wp
|
Poly 330Wp efficiency 18.8%
|
34pcs
|
|
2
|
Mounting Structure
|
Aluminum alloy Front Holder 0.5meter Backside Holder 1.2meter for 11220W solar panel
|
1 set
|
|
3
|
Solar Pump Inverter
|
11KW HSPH11KH
|
1 pcs
|
|
4
|
AC Submersible Pump
|

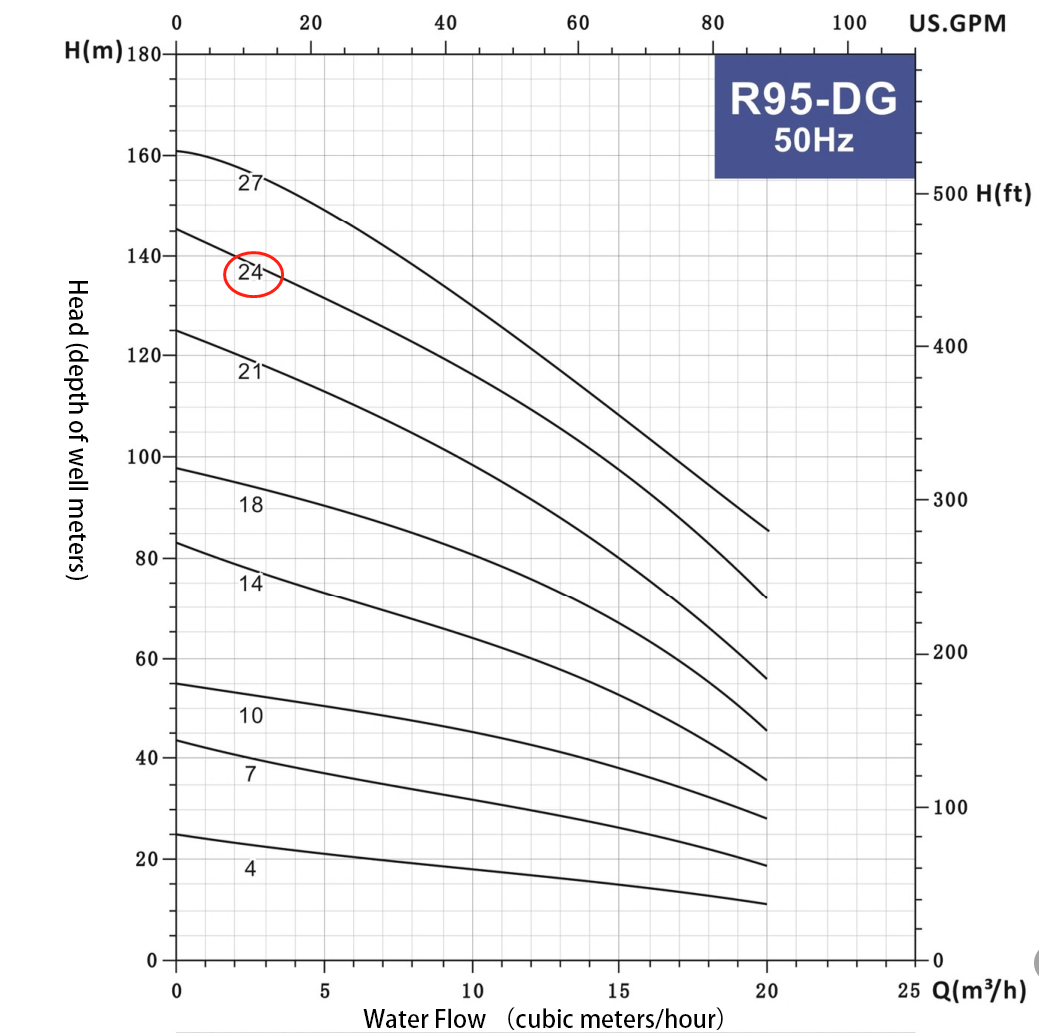

7.5KW AC Submersible pump (R95-DG-24) 3phase 380V /50Hz Max head: 145meter Max Flow: 18cubic meter/hour, @84 meter
|
1 pcs
|
|
5
|
AC Cable
|
3 x2.5mm2 1x 1.5mm2
|
1 set
|
|
6
|
PV cable
|
4mm2
|
1 set
|
|
7
|
Mc4
|
Mc4 for positive and negative
|
1 pair
|
|
Solar Pump Inverter
|
|
|
Power Capacity
|
11KW /14.6hp
|
|
Max Voc Input DC voltage
|
900V
|
|
MPPT voltage
|
>=300V
|
|
Max. MPTT efficiency
|
99.99%
|
|
Output frequency range
|
0-50/60Hz
|
|
Protection degree
|
IP65
|
|
Certificate
|
CE, IEC,TUV, ISO
|
|
Environment temperature
|
-10 to 60℃, Above 60℃ need to derate load
|
|
GPRS remote control
|
Optional
|

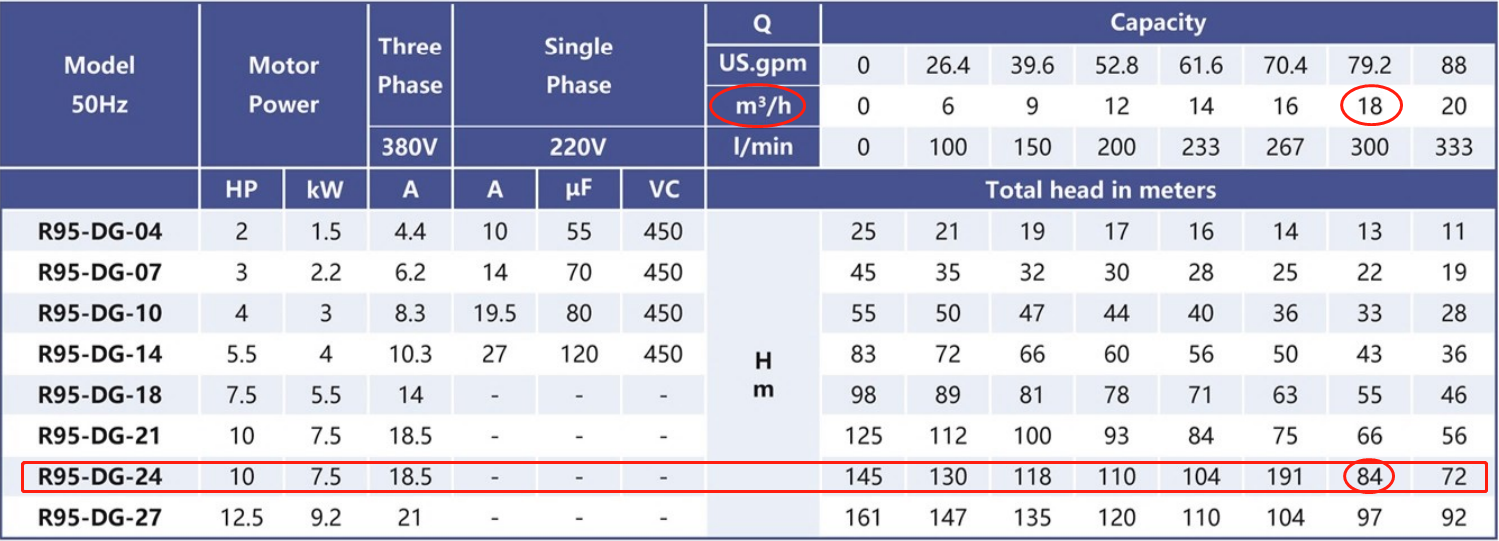

AC Submersible Pump specs
Stop reason: SPMCS, Timer, Solar Low Power, Hybrid start and stop, Water tank Full, Borehole level low(Pump dry-run), Pump dry-run by software, Pump over current, Overload, Overvoltage, Pcb ic error, Pump wire is broke
Warning message E2prom, hybrid, Pump current unbalance, Current sensor, such as W: System Time Error message: Over voltage, AC output over Current…and so on…
Solar panel Input Voltage & Current, and Power, Hybrid State, Power input of solar and AC, AC Output Frequency & Current, Inside Temperature, Water Level state of borehole and Tank, Warning Message, Error Message
More Details about the Hober 7.5kw solar water pumping inverter here
FREE Delivery within ZONE A of Nairobi and at a small fee in other parts of Kenya.
