Hober 11Kw Solar Pumping Inverter MPPT Hybrid (3 Phase) System
The Hober 11Kw Solar Pumping Inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. The inverter is appropriate for single-phase pumps with power requirements below 11000 Watts.
- Working time,
- Hybrid/stop,
- Dry-run Software protection,
- Water Sensor, AC output Voltage,
- AC output Phase loss,
- Easy Inverter Working Time Calibration,
- Over -Current or Over Load,
- Factory Reset
11kw Hober MPPT Solar Water Pumping Inverter Product feature:
- Applies to the use of three-phase asynchronous motor pump;
- With maximum power point tracking algorithm for dynamic VI, fast response speed, good stability, the efficiency of MPPT 99%;
- Fully automatic operation, can according to the actual situation to set free the speed range of pumps
- Using efficient SVPWM algorithm, the main circuit and high reliability, the highest conversion efficiency up to 98% ;
- Intelligent recognition of input voltage range, without the need to manually adjust the open circuit voltage, maximum power point voltage
- No button set to run automatically, only a switch control stop and boot;
- The maximum flow support manually controlled, prevent stop and boot repeatedly when water less or less needs of water
- The function of protecting the motor complete, can choose the upper and lower water level monitoring and control circuit, to prevent dry or over flow‘s pumping;
- Aluminum alloy shell, protection grade IP52, use environment temperature: -20 c~ 50 c
- Allows a wide range of input voltage, L type 200-450Vdc, H type of 460-750V
- With over-voltage, over-current, over temperature protection
- Input anti reverse function
- Small size and lower weight
Product Advantages
The Hober 11Kw Solar Pumping Inverter converter DC(from solar panel) into AC to drive the pump
- MPPT(99.9%) VFD (Variable Frequency Drive) to improve AC pump’s efficiency
- Using efficient SVPWM algorithm(98%)
- Fool-style operation ,Do not need to set any parameter ,just one knob
- Wide range of input voltage
- GPRS communication ,phone / computer monitor control
- Support AC switch
- Over-voltage, over-current, over temperature , short-circuit function to protect pump
- The OEM service ,design service ,buyer label service
Typical Hober 11kw inverter Applications include:
- residents living water
- irrigation
- desert control
- Solar powered Borehole water pumping
- livestock watering
- water treatment projects,etc.
Stop reason: SPMCS, Timer, Solar Low Power, Hybrid start and stop, Water tank Full, Borehole level low(Pump dry-run), Pump dry-run by software, Pump over current, Overload, Overvoltage, Pcb ic error, Pump wire is broken…
Warning message E2prom, hybrid , Pump current unbalance, Current sensor, such as W: System TimeError message: Over voltage, AC output over Current…and so on…
Solar panel Input Voltage & Current, and Power, Hybrid State, Power input of solar and AC, AC Output Frequency & Current, Inside Temperature, Water Level state of borehole and Tank, Warning Message, Error Message
Solar Pump Inverter Parameters
|
Model
|
HSPH11KH
|
|
|
Solar Panel DC Input
|
Max Voc Voltage
|
900V
|
|
Min Vmp Voltage
|
400V
|
|
|
Recommend Vmp Voltage
|
≥500V (Only Solar), ≥560 V (Hybrid Power)
|
|
|
Max MPPT Efficiency
|
99%
|
|
|
Max Input Current
|
36 A
|
|
|
Number Of Strings
|
2
|
|
|
Over load Power
|
17.6KW
|
|
|
Note
|
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming
|
|
|
Hybrid AC/Generator Input
|
Voltage
|
3 Phase 380/400/440V
|
|
Max Input Current
|
27 A
|
|
|
Hybrid Mode
|
Automatic .AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery
|
|
|
AC Output (For Pump, Rerator, Fan Parameters)
|
Max Adapted AC Pump Horse Power
|
15 HP
|
|
Max Adapted AC Pump Power
|
11KW
|
|
|
Drive Mode
|
3Phase Variable Frequency Drive
|
|
|
Max Output voltage
|
380/400/440V
|
|
|
Max Output frequency
|
50 ~ 60 Hz (support program range 15 to 60Hz)
|
|
|
Max Output Current
|
37.5 A
|
|
|
Max Efficiency
|
97%
|
|
|
Water Level Sensor(Borehole / Tank)
|
Yes
|
|
|
GPRS SMS Monitor&Controller
|
YES(Optional)
|
|
|
Support Remote Monitoring & Control System (SPMCS)
|
YES(Optional)
|
|
|
Display
|
LCD display
|
|
|
Waterproof
|
IP65
|
|
|
Noise
|
< 50dB
|
|
|
Cooling Method
|
Force Cooling by Fan (IP68)
|
|
|
Operating Enviornment
|
Operating Environment Temperature
|
-10 to 60℃, Above 60℃ need to derate load
|
|
Max Humidity
|
95%RH
|
|
|
Using Altitude
|
< 3000m, Above 3000m need to derate load
|
|
|
Others
|
Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc
|
|
|
Package
|
Size
|
550*350*285 MM
|
|
Weight
|
15.5 KG
|
|

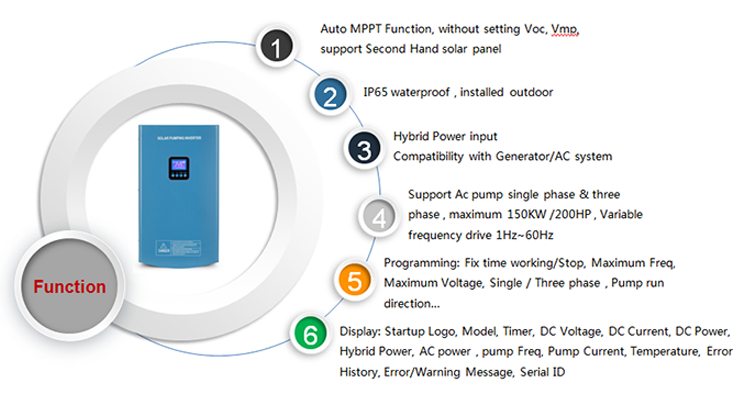

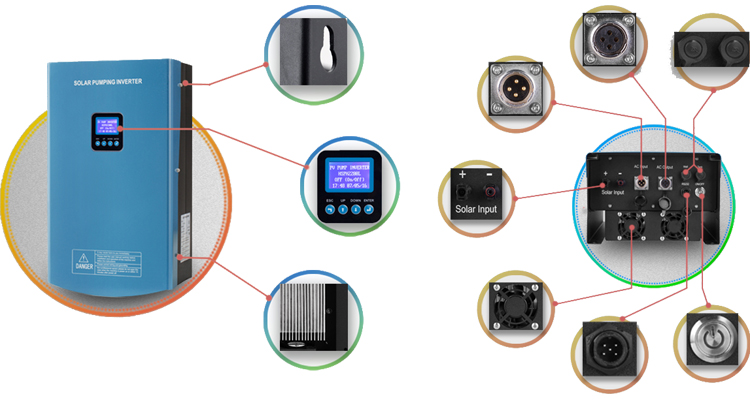

Hober Solar Pump Inverter Features
More Details about the Hober 11kw solar water pumping inverter here
